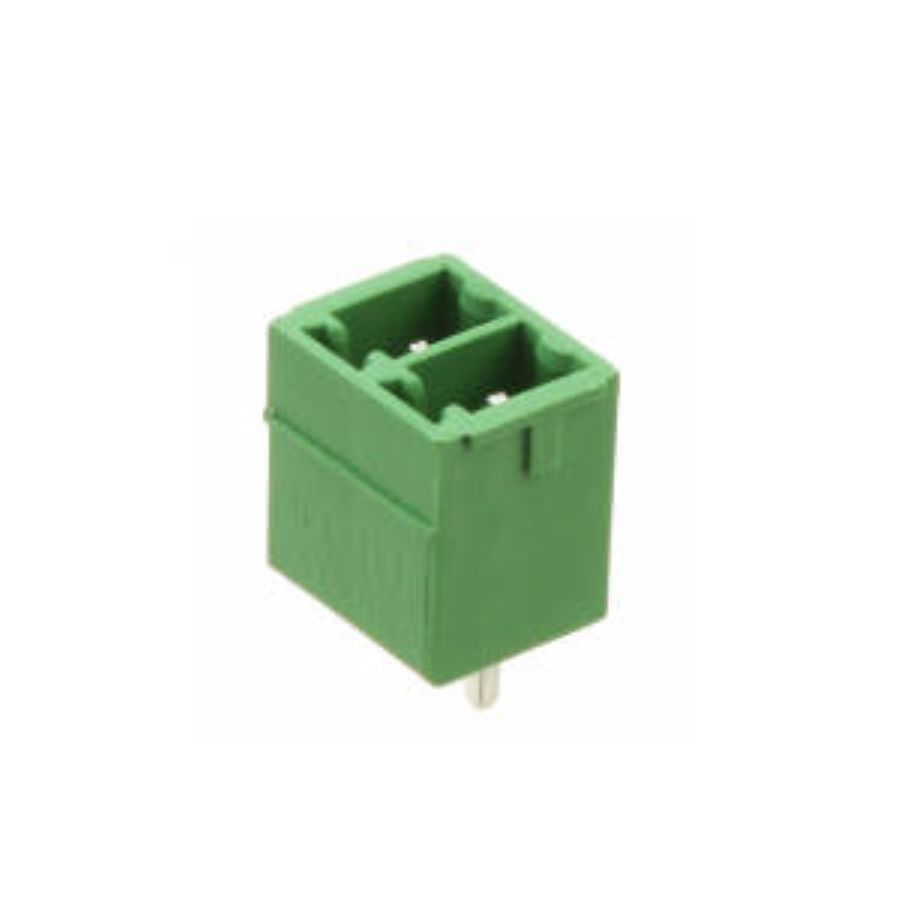

1803426
Manufacturer:
Phoenix Contact
Mfr.Part #:
1803426
Datasheet:
Description:
Terminal Blocks Through Hole 2 3.81 mm 8 A 160 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 160 V |
| RoHS | Compliant |
| Voltage | 160 V |
| Contact Plating | Tin |
| Pitch | 3.81 mm |
| Current Rating | 8 A |
| Flammability Rating | UL94 V-0 |
| Color | Green |
| Gender | Male |
| Number of Contacts | 2 |
| Mounting Style | Through Hole, Solder, PCB |
| lead free status | Lead Free |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| size width | 18.7 mm |
| size length | 9.01 mm |
| size height | 9.20 mm |
| voltage rating dc | 0.64 V (640 mV) |
| voltage rating ac | 160 V |
| Housing Color | Green |
| pin pitch | 3.81 mm |
| Connection Method | Plug |
| Current Rating (IEC) | 8 A |
| Voltage Rating (IEC) | 160 V |
Stock: 310
Distributors
pcbx
pcbxUnit Price$0.45715
Ext.Price$0.45715
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45715 | $0.45715 |
| 10 | $0.35693 | $3.56930 |
| 25 | $0.32717 | $8.17925 |
| 50 | $0.29989 | $14.99450 |
| 100 | $0.27489 | $27.48900 |
| 300 | $0.25197 | $75.59100 |
| 500 | $0.23096 | $115.48000 |
| 1000 | $0.21612 | $216.12000 |
